The Product
Every detail, engineered for the flight line.
Aero-Jolt brings turbine-grade portable power, intelligent monitoring, and rugged build quality together in a single unit that one person can carry anywhere.
Features
Designed by engineers. Refined for operators.

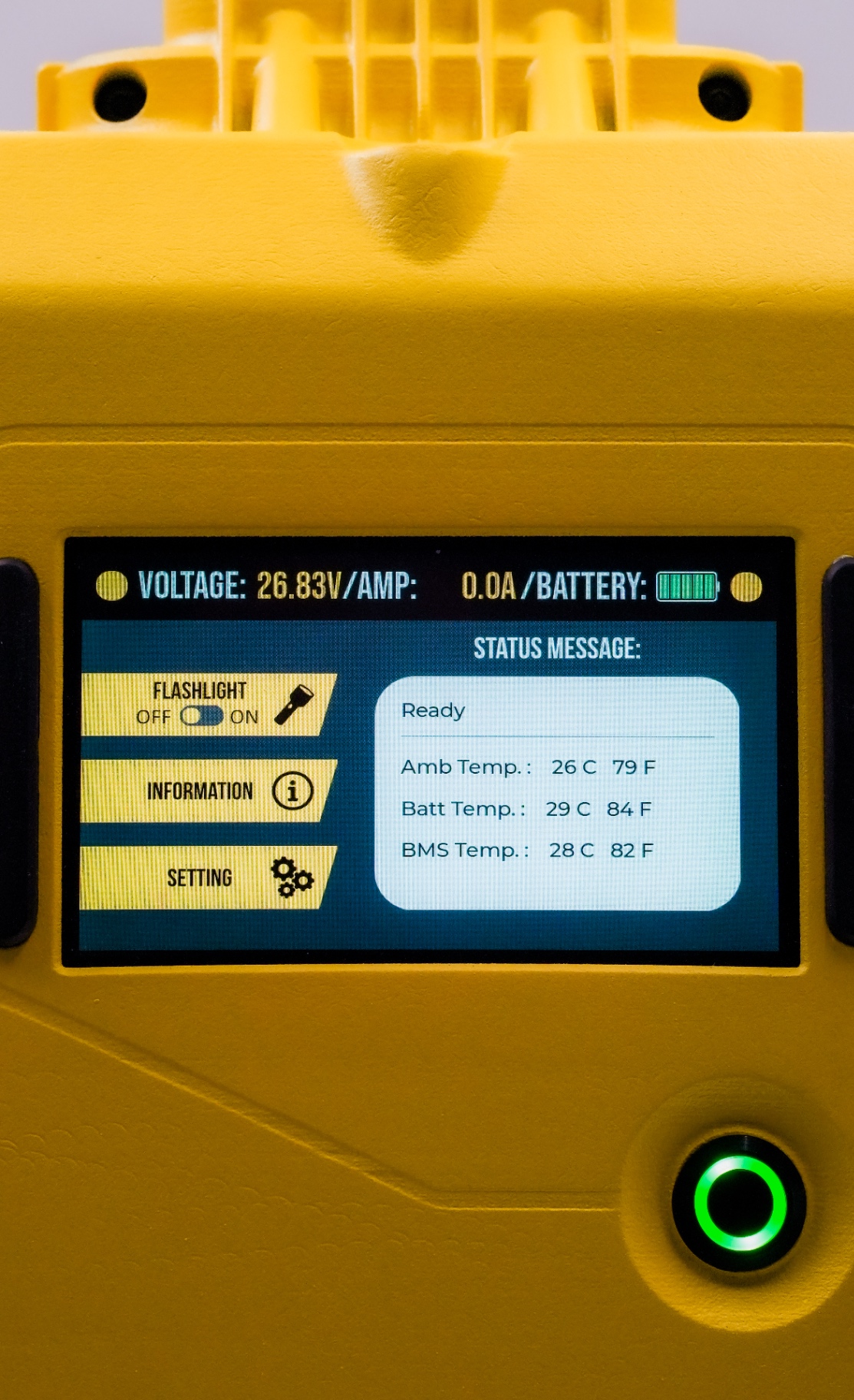

Touchscreen Battery Management System
A clear touchscreen interface delivers live system monitoring — voltage, current, temperature and state of charge — so every start is informed and controlled.

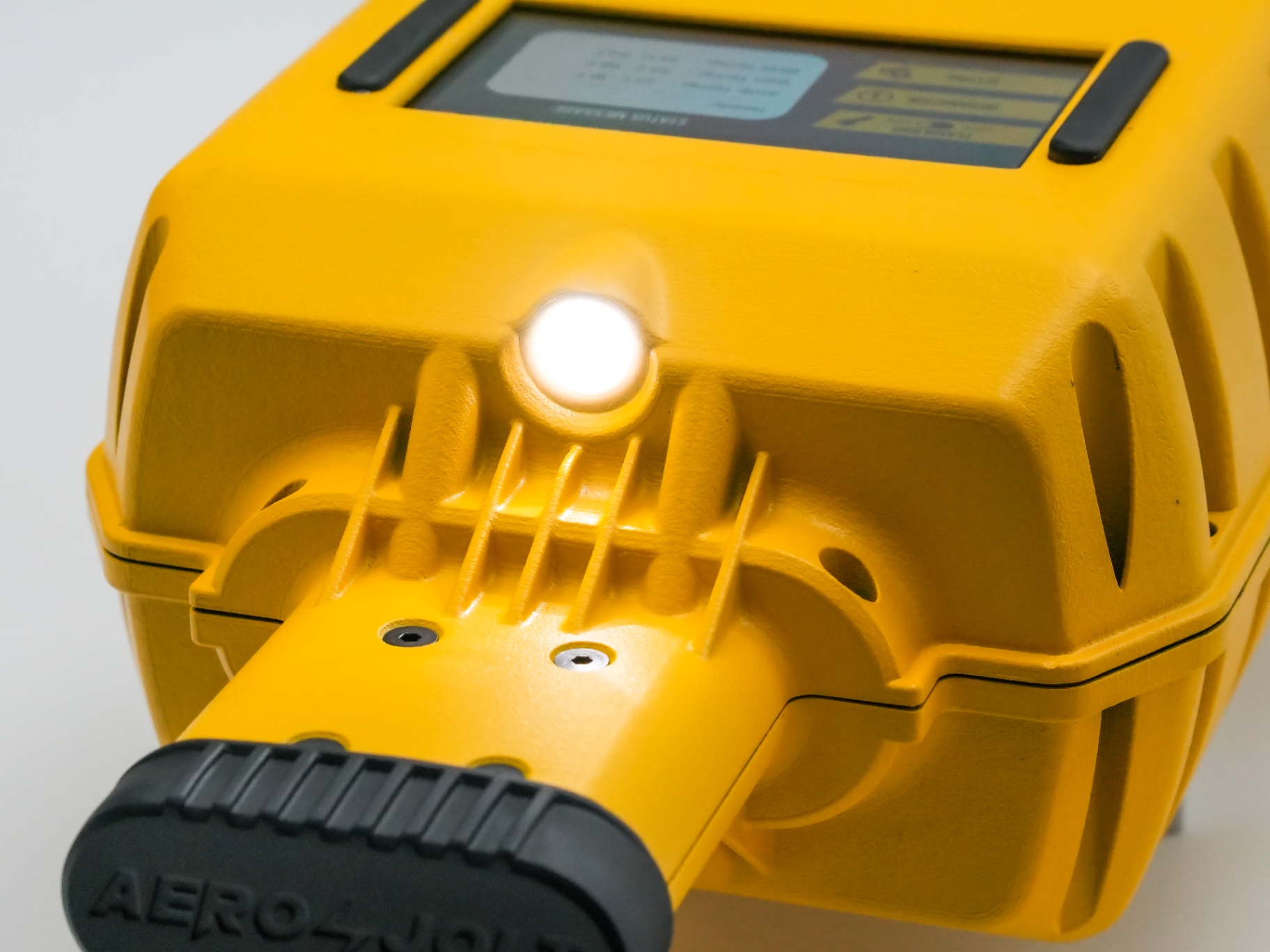

Integrated Flashlight
A built-in LED flashlight makes night operations, pre-flight checks, and ramp work easier without reaching for a second tool.
Rugged Composite Housing
Engineered for real-world flight line operations — impact-resistant composite construction that stands up to the hangar, ramp and baggage hold.

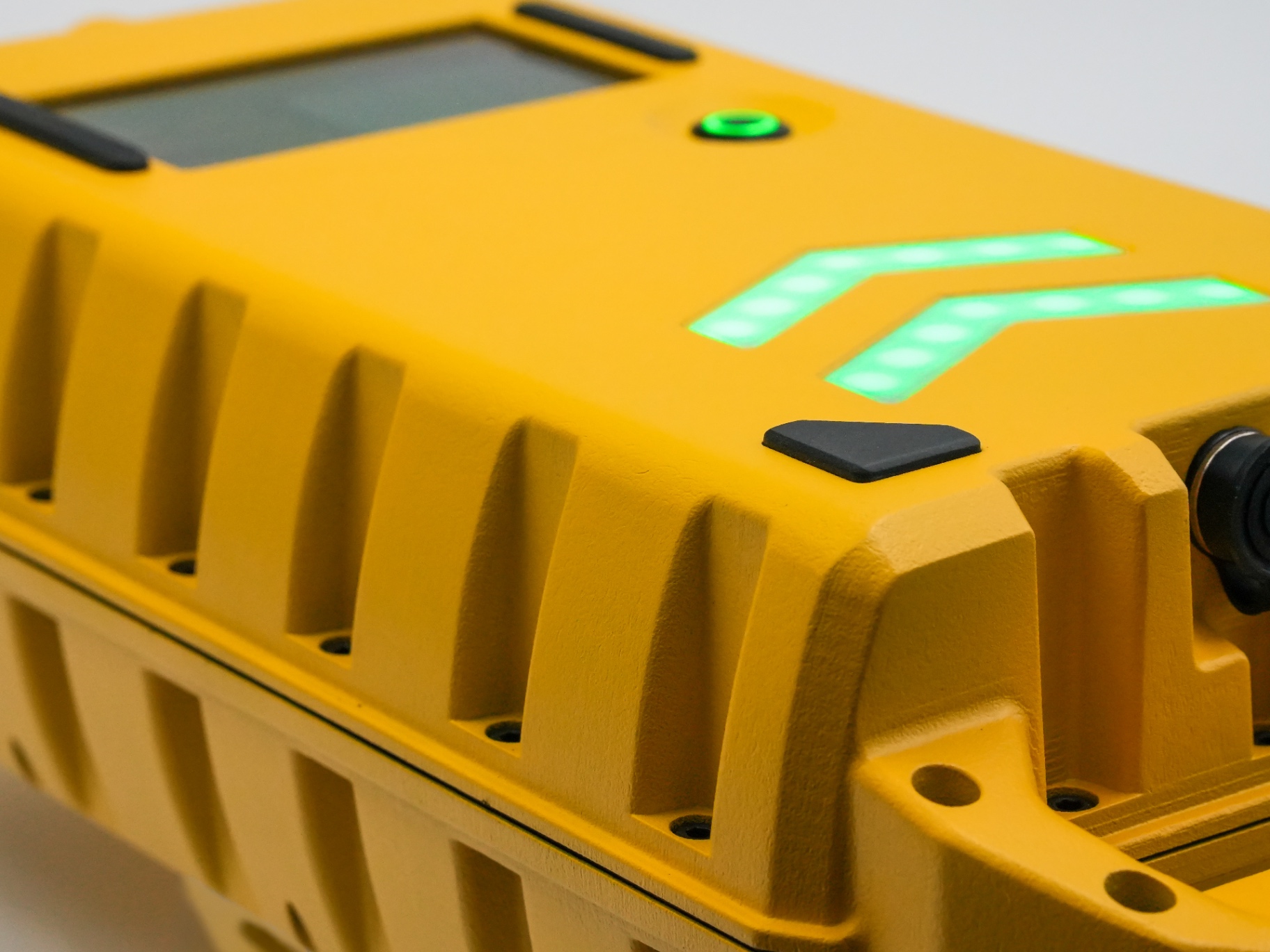

Status Chevron Indicators
At-a-glance chevron indicators give instant operational awareness of readiness and output state.
Ergonomic Grab Handle
A balanced, ergonomic handle makes insertion, removal and one-person handling effortless.
Smart Battery Protection
Multiple layers of electronic safeguards protect the unit, the aircraft, and the operator on every connection.

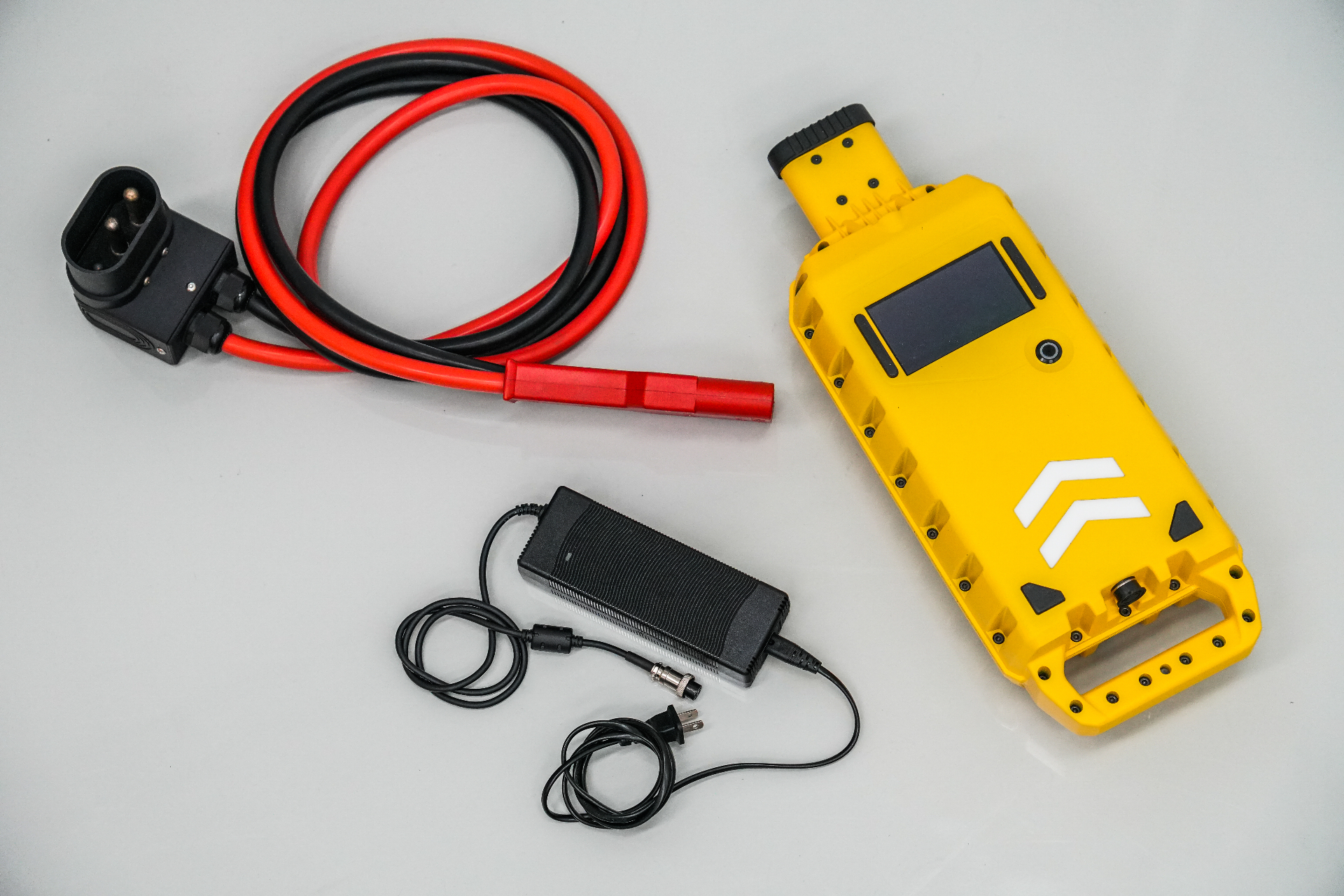

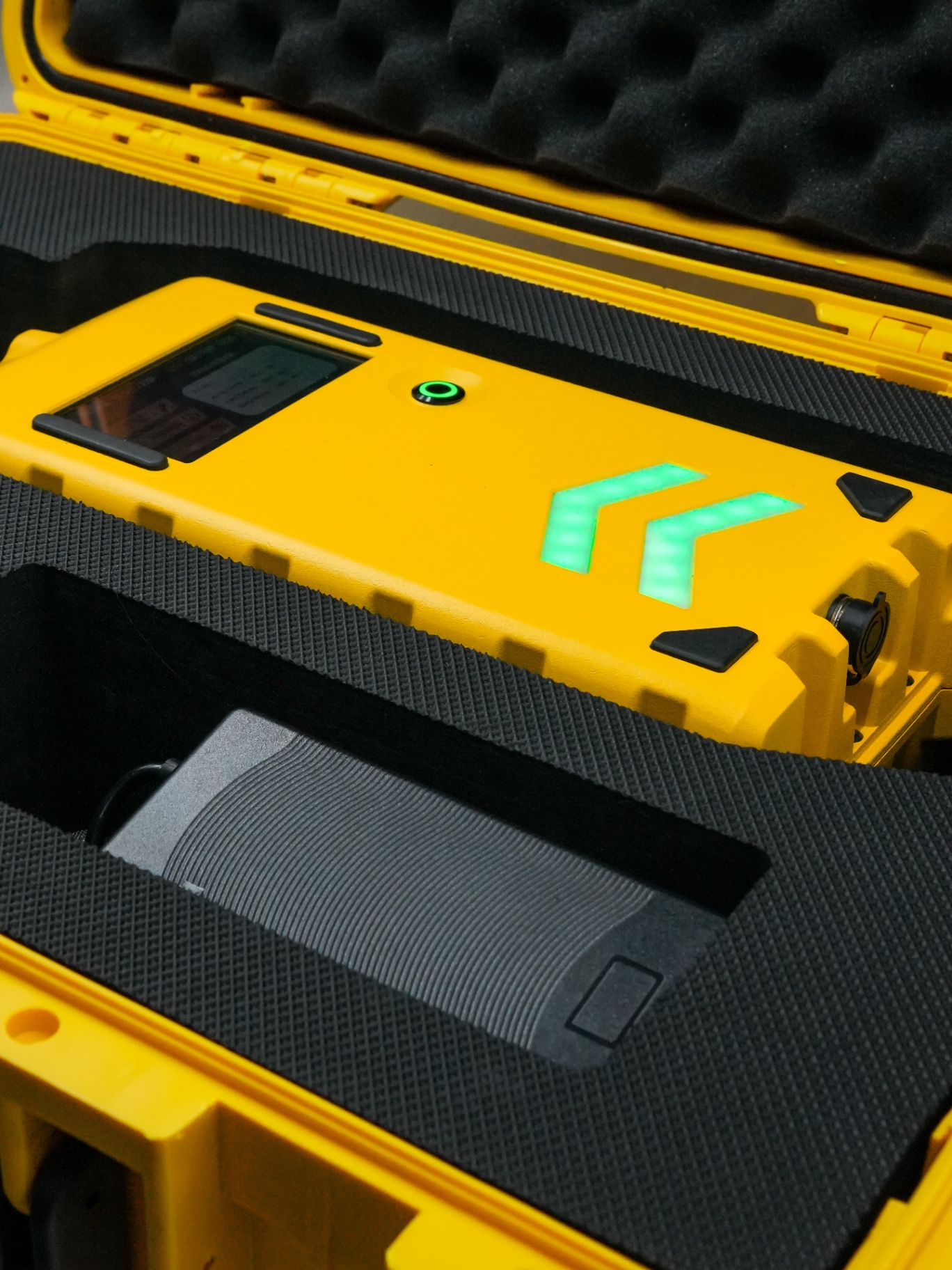

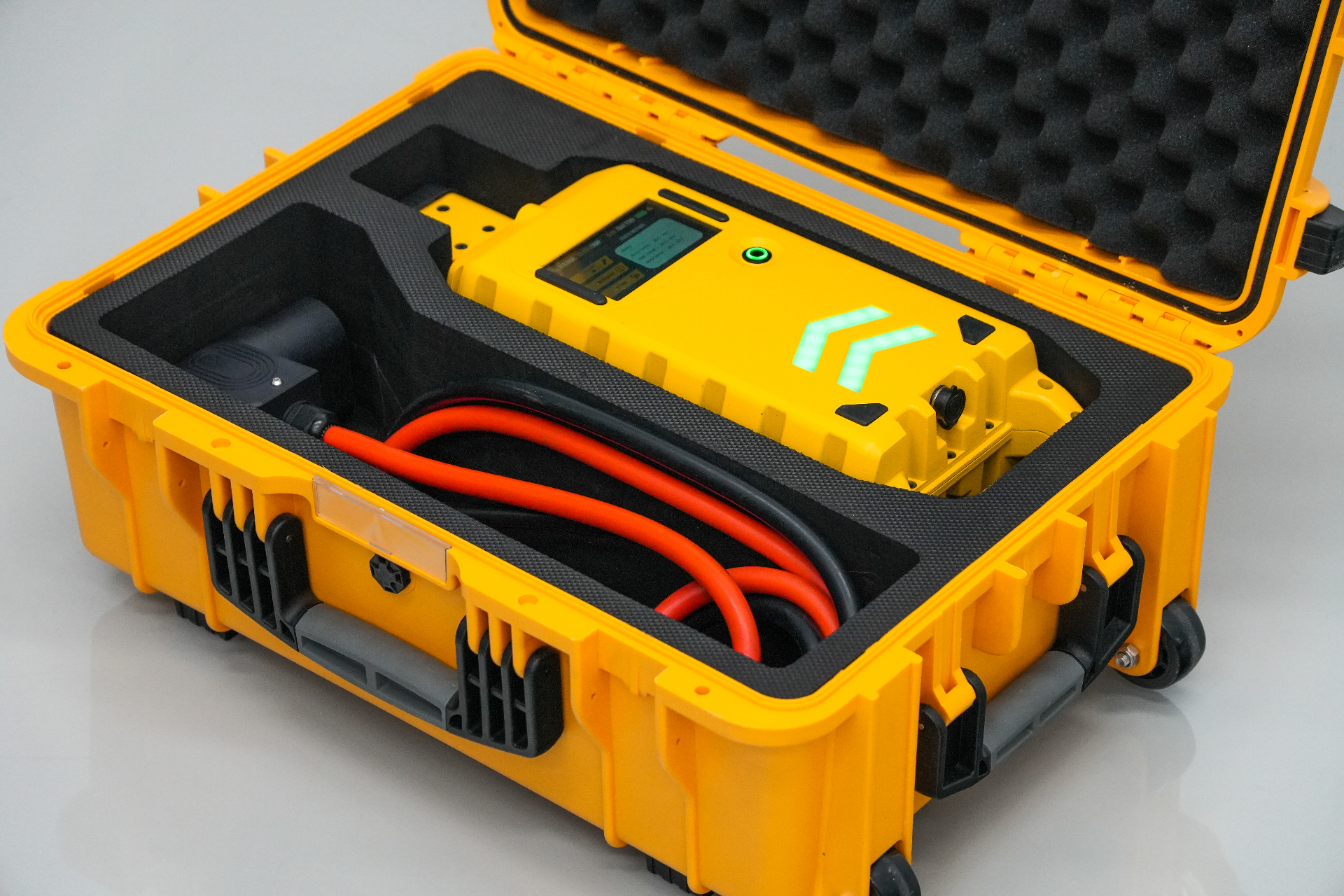

What's in the case
Everything you need, in one case.
Every Aero-Jolt ships ready to deploy — unit, charger, and accessories packed in a single rugged case.
- ●Aero-Jolt unit

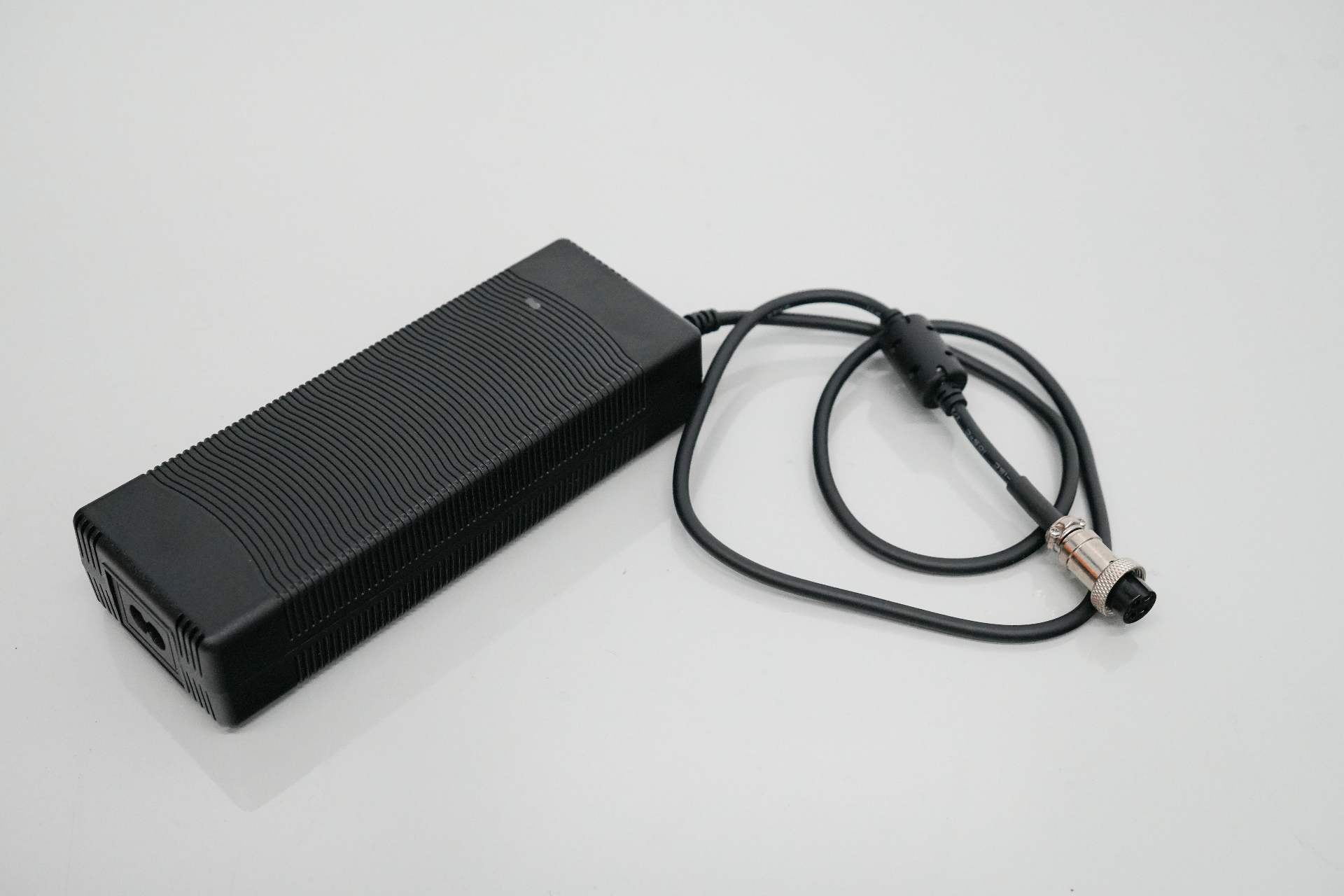

- ●Universal charger

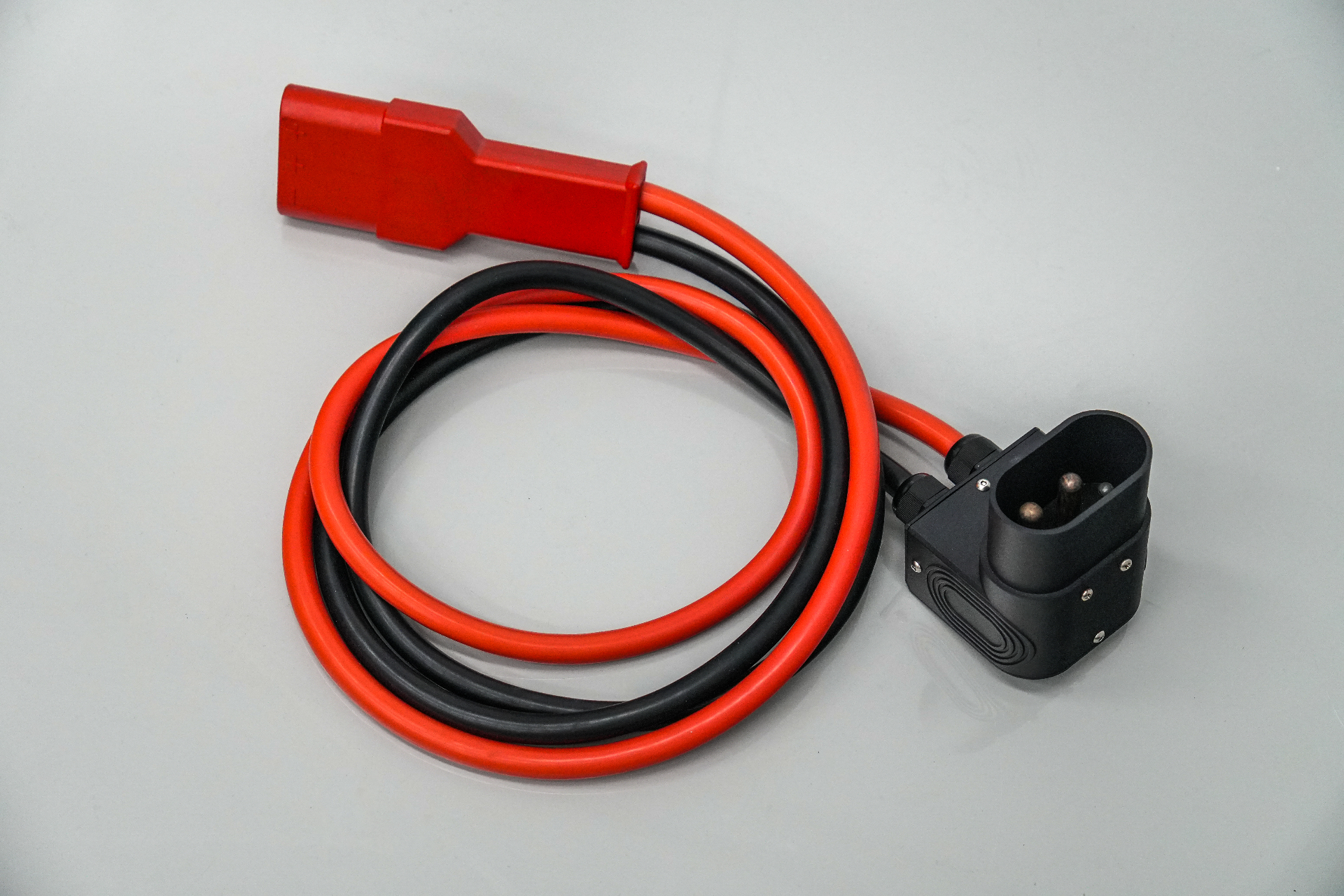

- ●Extension umbilical
- ●Operating manual
- ●Nose extension
Specifications
Technical data at a glance.
Key specifications for the Aero-Jolt AJ-2026. For the complete spec and safety documentation, see the support page.
Output & Electrical
- Nominal Output Voltage
- 28 V DC, fully regulated
- Continuous Output Current (15 s)
- 800 A maximum
- Peak Output Current
- 1600 A (safety cut-off)
- Sustained Draw Limit
- 200 A — auto cut-off after 20 s
- Standby Endurance
- ~60 min at 10–15 A standby load
- Output Connector
- 3-pin aircraft external power plug
- Output Regulation
- Closed-loop, BMS-managed
Battery System
- Cell Chemistry
- LiFePO₄ Nanophosphate®
- Cell Type
- 26650 cylindrical (ANR26650M1B class)
- Pack Configuration
- 8-series stack, internally regulated
- Pack Capacity
- 19 Ah (≈ 500 Wh)
- Nominal Cell Voltage
- 3.3 V (3.6 V max charge)
- Cycle Life
- 1000+ cycles to 80% retention
- Starts per Charge
- 3–6 (engine & temperature dependent)
Charging
- AC Input Voltage
- 110 V / 240 V universal
- Charge Rate
- 5 A nominal
- DC Charge Circuit Rating
- 5–6 A at 24 V
- Charge Time – After One Start
- ~ 30 minutes
- Charge Time – Depleted to Full
- ~ 6 hours
- Charging Temperature Range
- 0 °C to 60 °C
- Recommended Storage SOC
- ~ 60% for long-term storage
Mechanical & Environment
- Dimensions (L × W × H)
- 48 × 18 × 16 cm (18.9 × 7.1 × 6.3 in)
- Weight
- 7.6 kg (16.75 lb)
- Case Material
- Filled engineering plastic, shock-resistant
- User Interface
- Capacitive color touchscreen
- Operating Temperature
- −20 °C to 60 °C (−4 °F to 140 °F)
- Auto Shut-Off
- 10 minutes inactivity
- Service Life Target
- 7+ years with routine cycling
